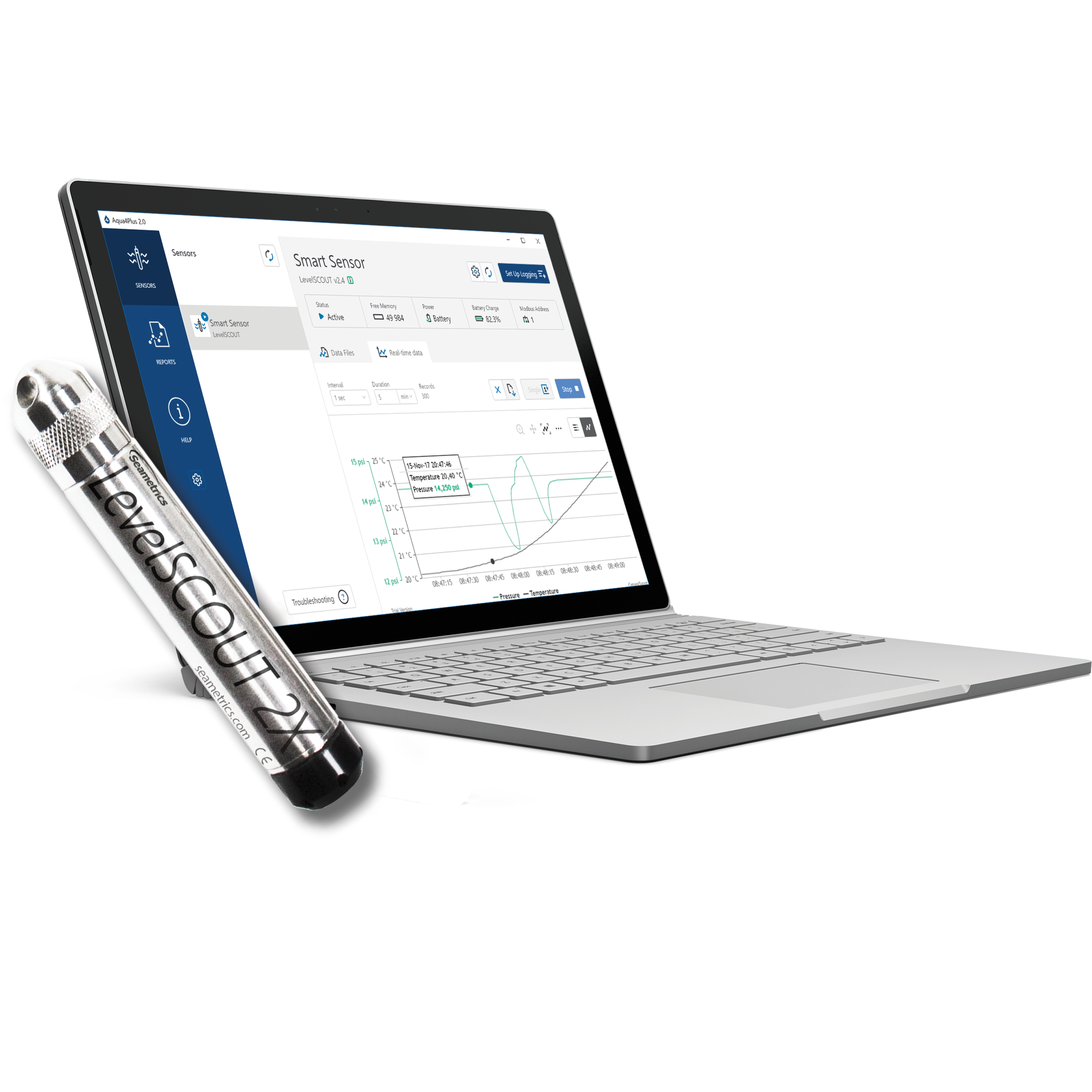

Seametrics LevelScout 2X
Product Type: Data Logger, Measures and records water level/pressure and temperature.
The Seametrics LevelSCOUT 2X Smart Sensor is ideal for site assessments, tidal studies, environmental monitoring, surface water discharge measurement, and aquifer level monitoring, as well as aquifer storage and recovery.
Features
Measures/Records level/pressure and temperature
Choose Cabled Version or Cableless
Low power — 5 year battery life
Replaceable battery
Modbus® RTU (RS485) & SDI-12
± 0.05% FS accuracy
Small diameter — 0.875” (2.22 cm)
100,000 records non-volatile memory
Barometric compensation utility
Double O-rings for added protection
Free, easy-to-use Aqua4Plus 2.0 software
Cable Configuration: The sensor cable is terminated with a weather-resistant connector.
Cableless Configuration: The sensor is terminated with a non-weatherresistant connector inside a screw-cap.
Product Type: Data Logger, Measures and records water level/pressure and temperature.
The Seametrics LevelSCOUT 2X Smart Sensor is ideal for site assessments, tidal studies, environmental monitoring, surface water discharge measurement, and aquifer level monitoring, as well as aquifer storage and recovery.
Features
Measures/Records level/pressure and temperature
Choose Cabled Version or Cableless
Low power — 5 year battery life
Replaceable battery
Modbus® RTU (RS485) & SDI-12
± 0.05% FS accuracy
Small diameter — 0.875” (2.22 cm)
100,000 records non-volatile memory
Barometric compensation utility
Double O-rings for added protection
Free, easy-to-use Aqua4Plus 2.0 software
Cable Configuration: The sensor cable is terminated with a weather-resistant connector.
Cableless Configuration: The sensor is terminated with a non-weatherresistant connector inside a screw-cap.
Product Type: Data Logger, Measures and records water level/pressure and temperature.
The Seametrics LevelSCOUT 2X Smart Sensor is ideal for site assessments, tidal studies, environmental monitoring, surface water discharge measurement, and aquifer level monitoring, as well as aquifer storage and recovery.
Features
Measures/Records level/pressure and temperature
Choose Cabled Version or Cableless
Low power — 5 year battery life
Replaceable battery
Modbus® RTU (RS485) & SDI-12
± 0.05% FS accuracy
Small diameter — 0.875” (2.22 cm)
100,000 records non-volatile memory
Barometric compensation utility
Double O-rings for added protection
Free, easy-to-use Aqua4Plus 2.0 software
Cable Configuration: The sensor cable is terminated with a weather-resistant connector.
Cableless Configuration: The sensor is terminated with a non-weatherresistant connector inside a screw-cap.
Data Logger Details
Non-volatile memory—your data will not be lost in the event of a power failure
Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time
Cable and Communication
Wireless connectivity
RS485 network—allows several sensors to be networked together and provides much longer cable leads
Field-serviceable connectors—easily remove the connector, route cable through well seals, walls, or conduit, and then replace connector
Available cableless or with a user attachable PU or ETFE cable
Software
Comes with free Aqua4Plus control software to get you up and running immediately
View your data in real-time
Easy export to spreadsheets and databases
Barometric compensation utility
Update sensor via firmware while in the field—great for future updates
Applications
Site assessments
Tidal studies
Environmental monitoring
Surface water discharge measurement
Aquifer level monitoring
Aquifer storage & recovery
Pumping tests

LevelSCOUT 2X Cable Options
PU Standard Cable, 5-Cond., Braided, Non-Vented w/Kevlar (per foot) PN 7A23562
(Required for the cabled version)
PU Standard Cable, 5-Cond., Braided, Non-Vented w/Kevlar (per meter) PN 7A23662
(Required for the cabled version)
Stainless Steel Cableless Adapter Replacement Kit Accessory PN 7A23114
LevelSCOUT 2X Battery Replacement Kit Accessory PN 7A70520
Contact our office for pricing on cable or accessories
Installing your LEVELSCOUT 2X
The LevelSCOUT 2X measures level. The most common application is measuring liquid levels in wells and tanks. In order to do this, the sensor must be installed below the water level at a fixed depth. The installation depth depends on the range of the sensor. The sensor should not be installed below its maximum depth. If the sensor is installed below its maximum depth, damage may result to the sensor and the output reading will not be correct.
Lower the sensor to the desired depth.
Fasten the cable to the well head using tie wraps or a weather proof strain-relief system.
Take a measurement to insure the sensor is not installed below its maximum range.
Be sure the supplied cap is securely placed on the weather-resistant connector at the top of the cable. Do not install such that the connector might become submerged with changing weather conditions. The connector can withstand incidental splashing but is not designed to be submerged. The sensor can be installed in any position; however, when it leaves the factory it is tested in the vertical position. Strapping the sensor body with tie wraps or tape will not hurt it. If the sensor is being installed in a fluid environment other than water, be sure to check the compatibility of the fluid with the wetted parts of the sensor.
Fore more information please view the user’s instruction manual.
