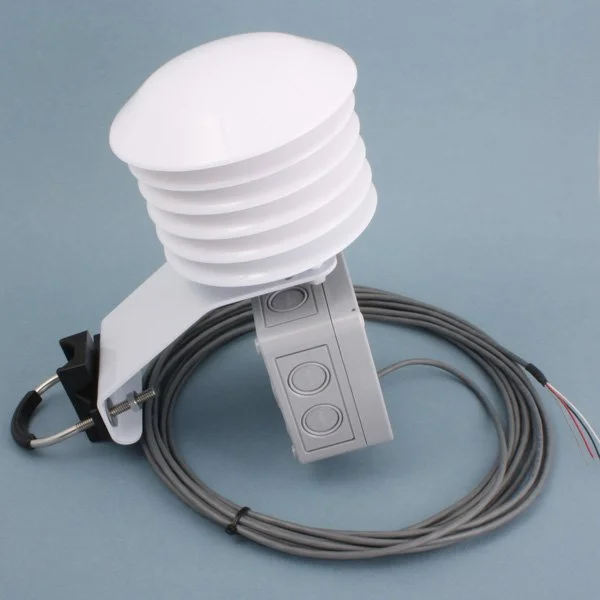

Air Temperature Transmitter with Solar Shield and White Junction Box
Junction box mounted on a pole measuring ambient temperature
210-501 Temperature Transmitter with Solar Radiation Shield
Air Temperature Transmitter with Solar Shield and White Junction Box
Junction box mounted on a pole measuring ambient temperature
210-501 Temperature Transmitter with Solar Radiation Shield

210-501 Ambient Temperature Transmitter

from $1.87
Items:

MFR: NovaLynx

Product: 210-501 Temperature Transmitter with Solar Radiation Shield

The 210-501 Temperature Transmitter measures outside air temperature using a platinum RTD sensor enclosed in a 6-plate solar radiation shield. It produces a 4-20 mA output signal which is an industrial standard signal for process control monitoring. Most PLCs (Programmable Logic Controllers), RTUs (Remote Telemetry Units), and data acquisition systems accept this signal directly.

If a voltage signal is required, the sensor output may be converted by reading the voltage across a precision resistor in series with the signal wire. When the 4-20 mA signal is dropped across a 250 ohm resistor, the output will be 1 to 5 Vdc.

The 210-501 can be operated as a loop-driven device or connected in 3-wire configuration. 25 feet of 3-conductor cable is included with the sensor. The cable can be removed and replaced with a longer length if needed, up to 500 feet.

NOTE: This item ships in approximately 1 week, call or email us for up to date product availability.

Documentation

210-501 Datasheet

MFR: NovaLynx

Product: 210-501 Temperature Transmitter with Solar Radiation Shield

The 210-501 Temperature Transmitter measures outside air temperature using a platinum RTD sensor enclosed in a 6-plate solar radiation shield. It produces a 4-20 mA output signal which is an industrial standard signal for process control monitoring. Most PLCs (Programmable Logic Controllers), RTUs (Remote Telemetry Units), and data acquisition systems accept this signal directly.

If a voltage signal is required, the sensor output may be converted by reading the voltage across a precision resistor in series with the signal wire. When the 4-20 mA signal is dropped across a 250 ohm resistor, the output will be 1 to 5 Vdc.

The 210-501 can be operated as a loop-driven device or connected in 3-wire configuration. 25 feet of 3-conductor cable is included with the sensor. The cable can be removed and replaced with a longer length if needed, up to 500 feet.

NOTE: This item ships in approximately 1 week, call or email us for up to date product availability.

Documentation

210-501 Datasheet


210-501 Temperature Transmitter with Solar Radiation Shield

210-501 Specifications

  • Sensor type: Pt1000 RTD

  • Range/Operating temperature: -40 to 140°F (-40 to 60°C)

  • Accuracy: ±0.5°C @ 25°C

  • Response time: 100 ms

  • Materials: 304 stainless steel (probe), polycarbonate (housing)

  • Electrical connection: Terminal block (internal), tinned leads (cable)

  • Power requirement: 12 to 36 Vdc

  • Output signal: 4-20 mA loop or 3-wire configuration

  • Cable: 3-conductor 24 AWG, 25 feet (7.6 m) standard, 500 feet (152 m) maximum

  • Enclosure rating: NEMA-4X (IP66)

Applications

  • Agriculture, Livestock Operations

  • Greenhouse Monitoring

  • Building Automation Systems

  • Climate Monitoring/Weather Stations

  • Evaporation Measurement Stations

  • Solar Power Generation Facilities
